Our Rich Land – Draining the Prairie

German immigrants who arrived after the railroad brought with them drainage techniques.

They purchased wet, swampy, low lying prairie, and installed tiles that drained the water to the nearest creek or stream. This drained soil was rich with nutrients and produced abundant crops.

In 1887 Bloomington’s Weekly Pantagraph reported that over 28,756,403 feet of tile had been installed in McLean County — the equivalent of over 5,400 miles.

“The amount of corn raised is larger than ever, owing to drainage...will probably continue to increase.”

— Bloomington Pantagraph
October 22, 1879

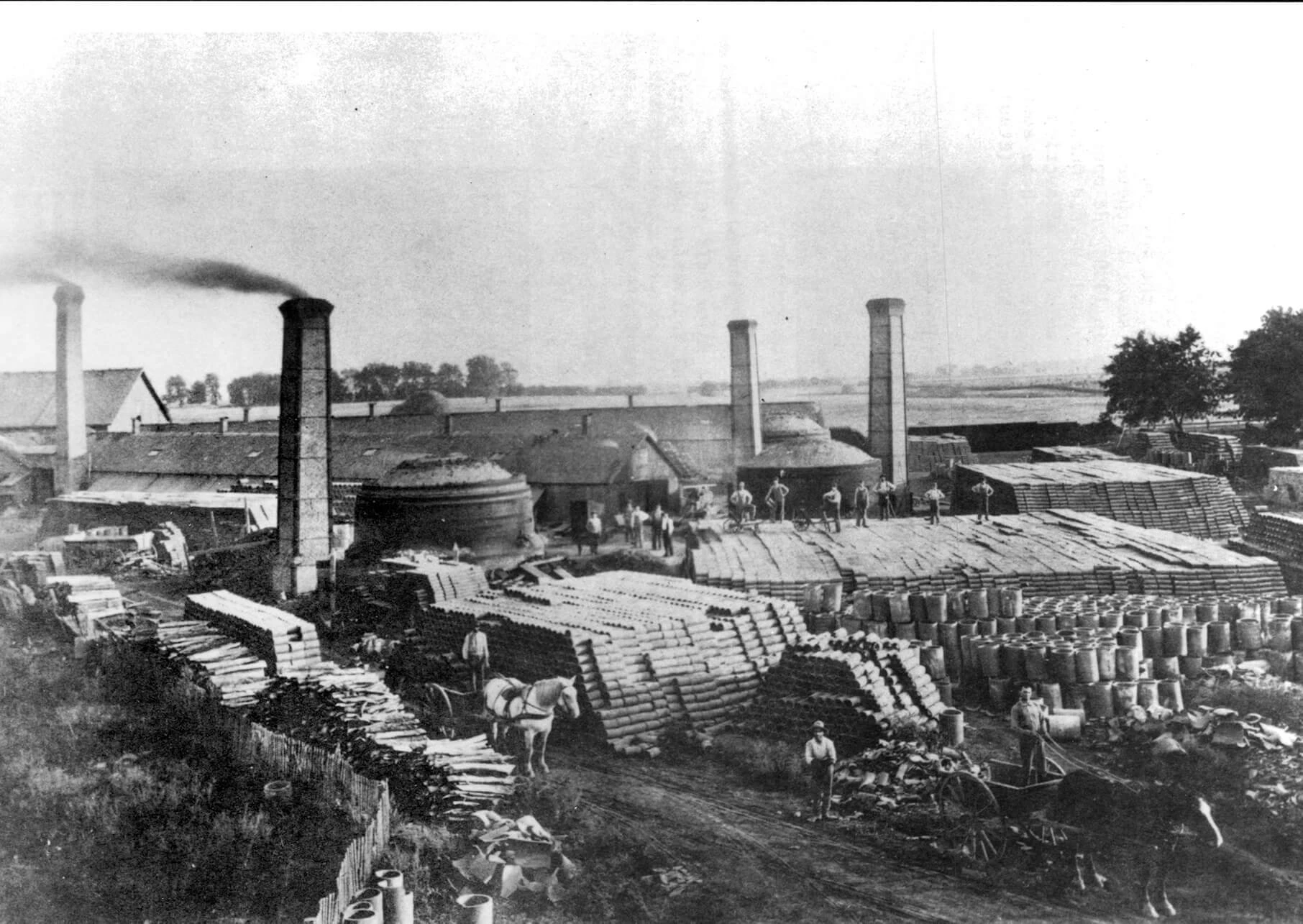

As tiling caught on, factories such as the Chenoa Tile Works produced tiles using local clay. In fact, many McLean County towns had “tile works.”

In the late 19th century farmers began to dig large drainage ditches to eliminate excess water in fields.

An expensive endeavor, districts were formed to fund, build, and regulate the drainage of excess water in fields.

In November of 1895, the Bloomington Pantagraph reported on a drainage district established in Logan County that saw amazing results.

“Fully 20,000 acres of land has been reclaimed by means of this drainage district. Of this amount about 10,000 acres were worthless. It was worth in the neighborhood of $10 per acre, but now easily brings $100. Not all of the 20,000 acres have been increased in value this much, but all of it has increased fully 100 percent.”


Bloomington Pantagraph

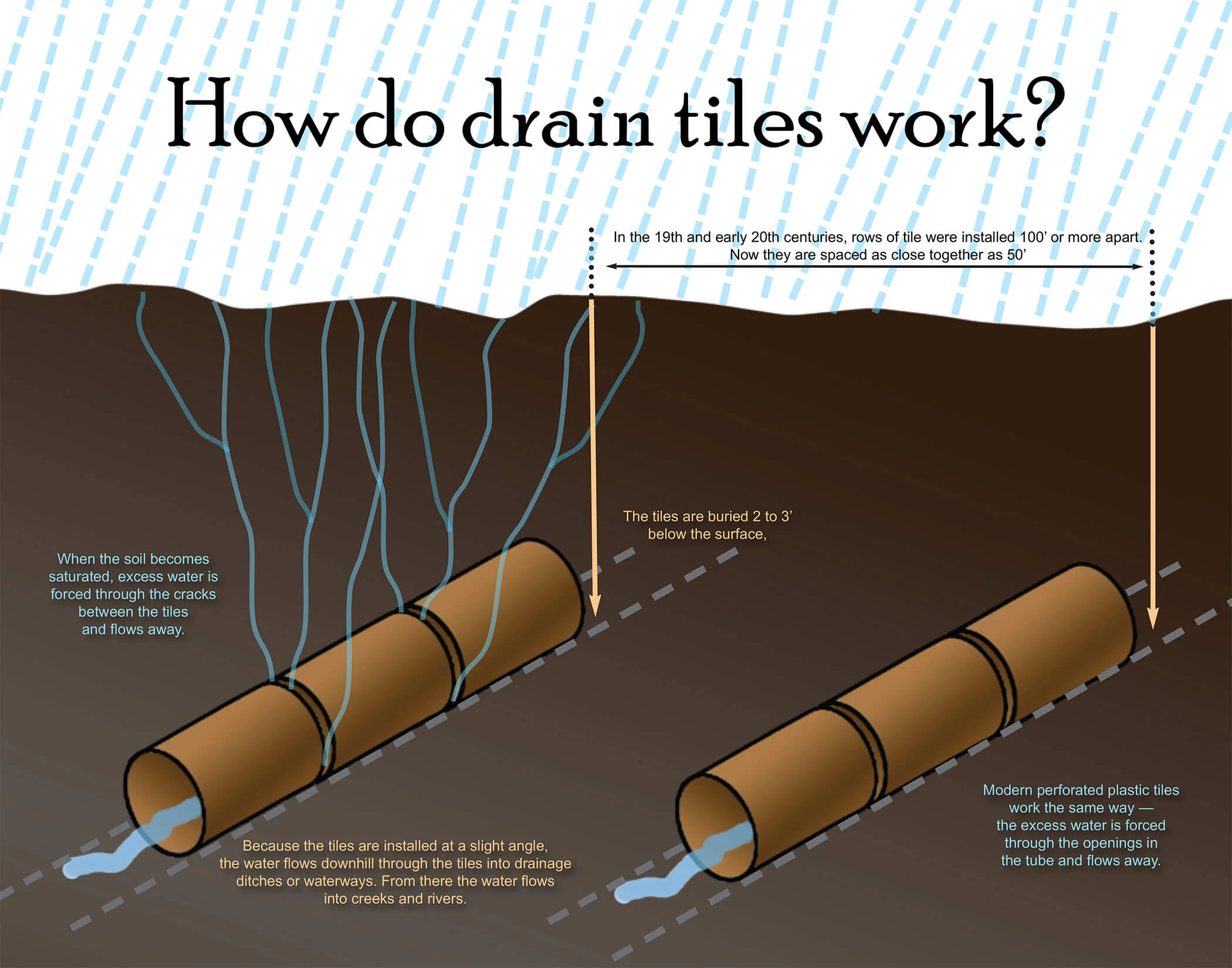

Drain tiles are buried 2' to 3' (0.6 m to 0.9 m) underground. When soil becomes saturated, excess water is forced through the cracks between the tiles and flows away, rather than flooding the fields. Because the tiles are installed at a slight angle, the water flows downhill into drainage ditches or waterways. From there, it flows into creeks or rivers. Modern perforated plastic tiles work the same way.

Many hands were needed to dig the trenches, place the tiles, and then cover them with soil.

European immigrants in need of jobs found work installing thousands of feet of tile in McLean County.

Bloomington Pantagraph, April 15, 1891

Modern Equipment

McLean County farmers were still installing new drainage tiles in the 1940s, but with modern equipment.

“Machine does the work of 25 tilers”

— Bloomington Pantagraph
1941

A clay drain tile in the ground.

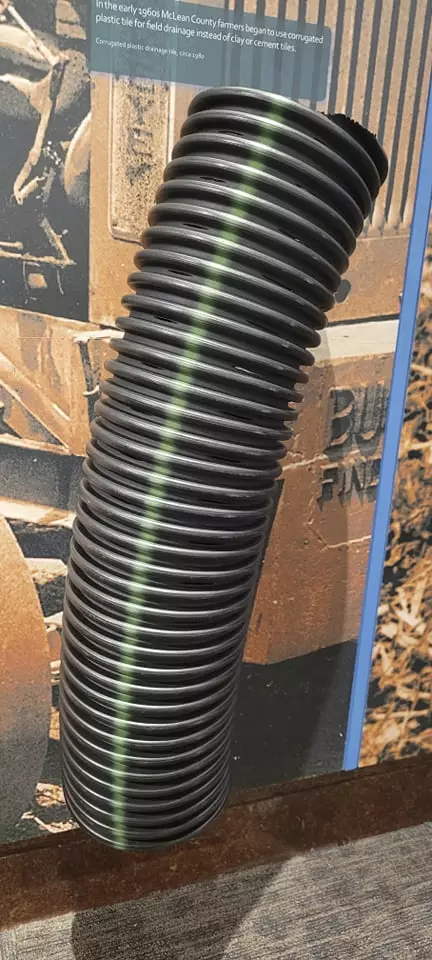

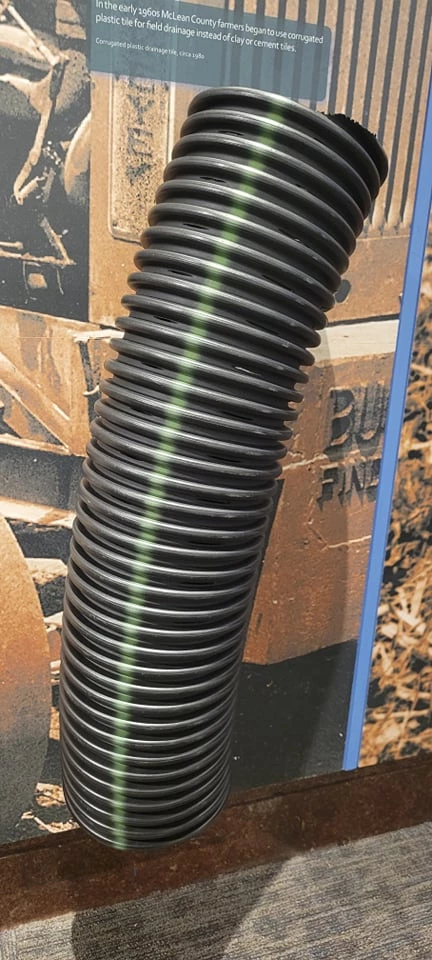

Corrugated Plastic Drainage Tile, circa 1980

View this object in Matterport

In the early 1960s McLean County farmers began to use perforated plastic tile for field drainage instead of clay or cement tiles.

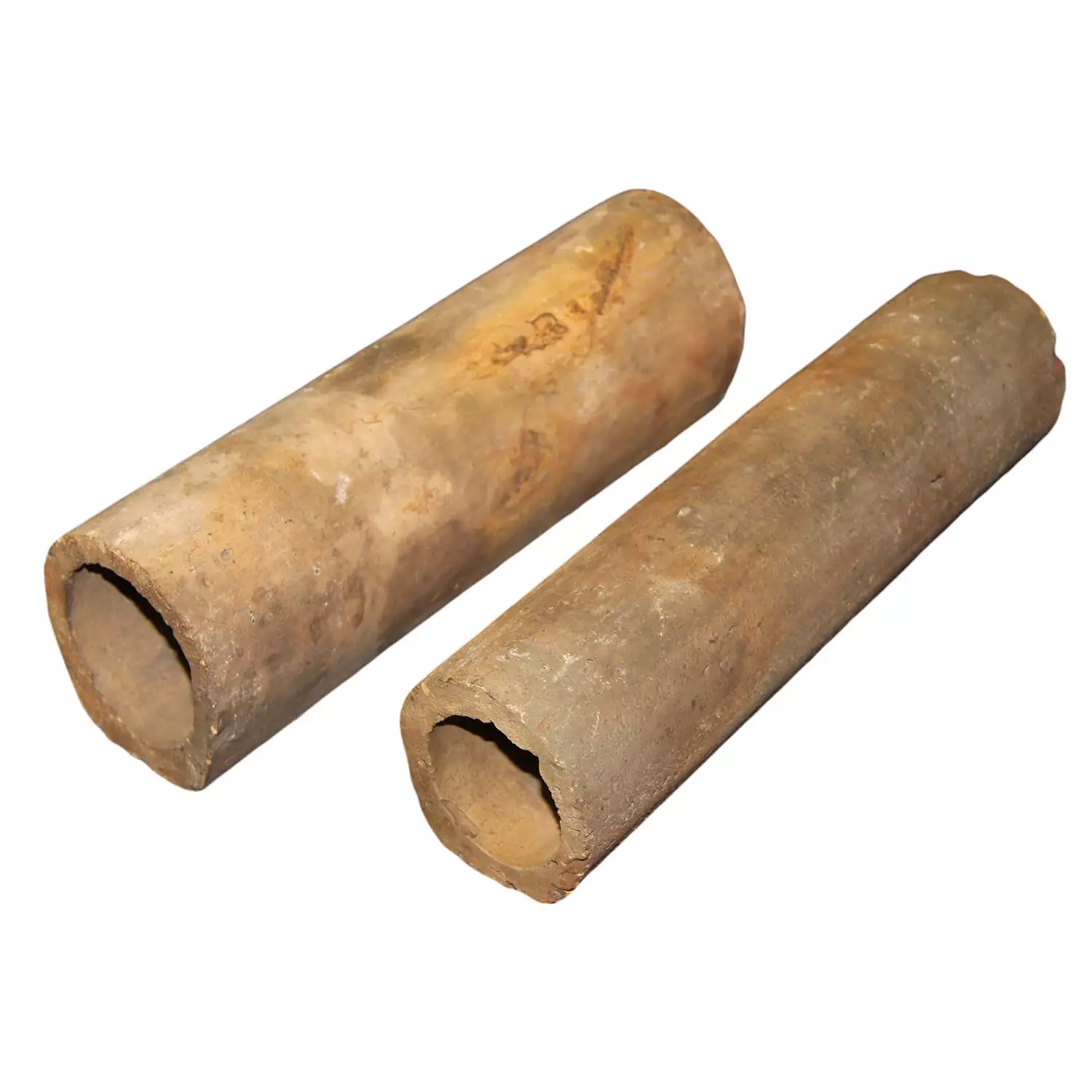

Clay Drainage Tiles, circa 1900

View this object in Matterport

Tiles, like these, were installed underground to drain fields of excess water.

905.510

Tile spade, circa 1920

Donated by: Martin Wyckoff
835.307

Tile spade, circa 1885

Donated by: William Hoover
845.322

Tiles were installed on the Charles Snow farm north of Merna in 1941. Peter Tammen and William C. Onken, who ran the operation, said the machine did the work of 25 laborers. But the tiles still had to be hand placed in the trench.

In 1946 a drainage ditch was constructed by the Lawndale Drainage District, near Cropsey. The boat-like contraption moved forward as it scooped out earth and placed it on the outer edges of the ditch.

One hundred and fifty years after clay tiles were first installed in McLean County, farmers were still putting new tile into the ground. They were also replacing early tiles.

By the late 1970s the process was totally mechanized and the tile used was a perforated plastic tube.

In the spring of 1981 Fairbury farmer Maurice Abrahamson and his son Roger decided they could no longer cope with the delayed planting and lowered yields that resulted from wet springs and rainwater collecting in depressions on their 600 acre farm.

“Tile is as important as fertilizer.”

— Keith McClure

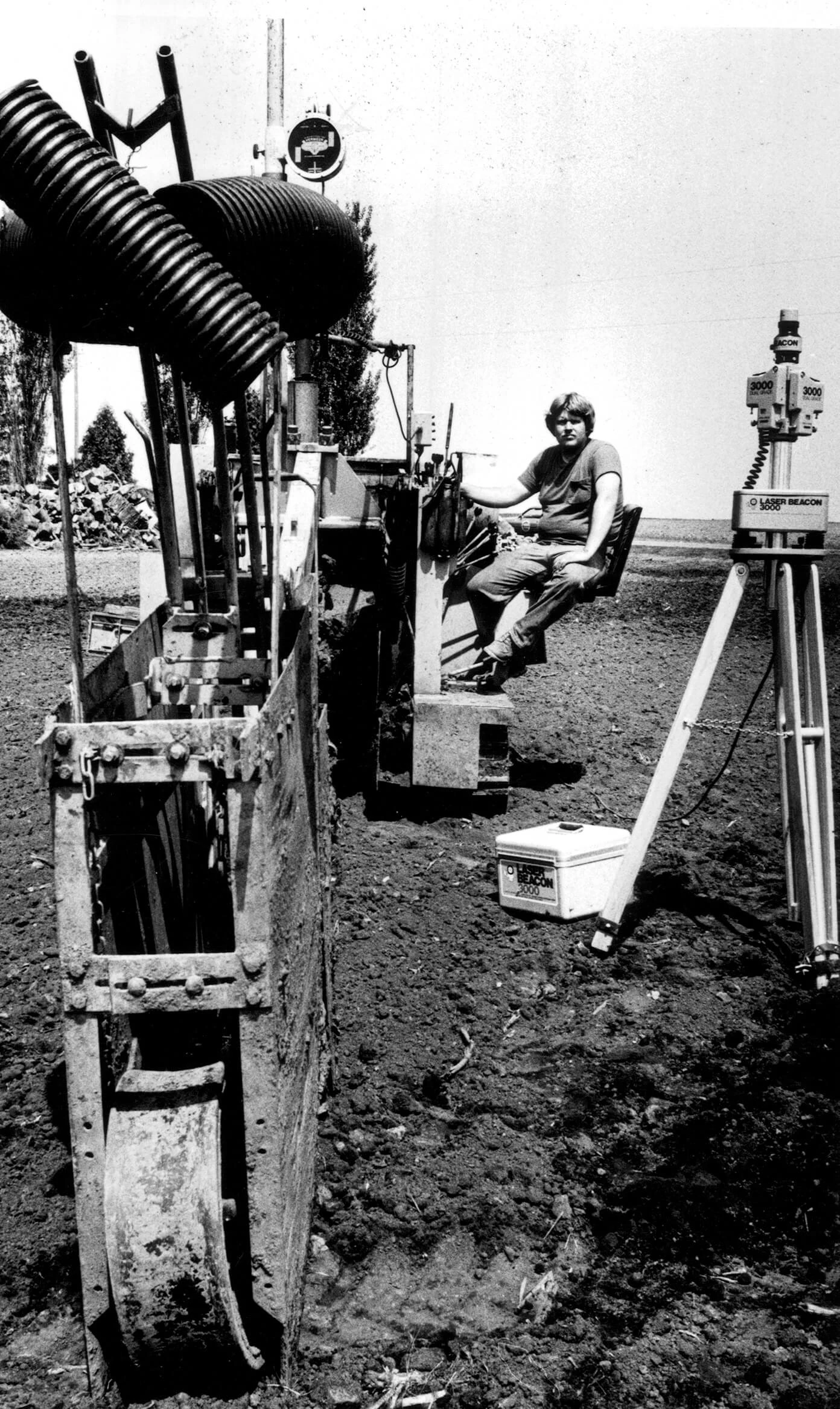

After he surveyed the field and determined exactly where to lay the tile, Keith McClure of Colfax installed 9,300 feet of plastic tile on the Abrahamson farm. The machine dug the trench, placed the perforated plastic tube into the trench, then covered it in one smooth operation.
